Call 903-663-3838 for more info.
- Status:Certified Pre-Owned

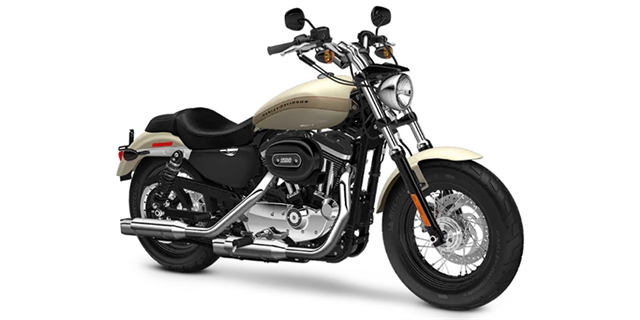

- Vehicle:2018 Harley-Davidson Sportster 1200 Custom
- VIN:1HD1CT33XJC424304
- Model Number:XL1200C
- Mileage:24,682 miles
- Color:Bonneville Salt Pearl
- Stock Number:424304
- Location:Roughneck Harley-Davidson
- Warranty:Manufacturer's
BRAKES
- Front Brake Diameter (in):11.8
- Front Brake Diameter (mm):300
- Front Brake Type:Hydraulic Disc
- Rear Brake Diameter (in):11.8
- Rear Brake Diameter (mm):300
- Rear Brake Type:Hydraulic Disc
ENGINE
- Bore (in):3.5
- Bore (mm):88.9
- CAN Liters Per Kilometer (Combined):4.9
- Carburetion Type:Fuel Injected
- Compression Ratio:10.0
- Cooling:Air
- Cylinders:2
- Displacement (cc):1202.8
- Displacement (ci):73.4
- Engine Brand Name:Evolution®
- Engine Stroke:4-Stroke
- Engine Type:V Twin
- Fuel Injector:Yes
- Fuel Requirements:Premium
- Fuel Type:Gas
- Starter:Electric
- Stroke (in):3.81
- Stroke (mm):96.8
- Torque (Ft Lbs):73
- Torque (Nm):99
- Torque RPM:3750
- US Miles Per Gallon (Combined):48
- Valve Configuration:OHV - Pushrod
- Valves Per Cylinder:2
- Valves:4
EXTERIOR
- Belt Guard:Yes
- Foot Peg Location:Driver and Passenger
- Frame:Steel
- Side Cover:Yes
- Stand Type:Kick
GLASS
- Folding:Yes
INSTRUMENTATION
- Fuel Level Warning Type:Light
LIGHTS
- Type:Halogen
SEATS
- Number Of Seats:2
- Seat Height (in):28.5
- Seat Height (mm):723.9
- Seat Location:Driver and Passenger
- Seat Material:Leather
- Seat Type:One-Piece
STEERING
- Steering Control:Handlebar
SUSPENSION
- Front Suspension Size (in):39
- Front Suspension Size (mm):990.6
- Front Suspension Type:Telescopic Fork
- Number Rear Shock Absorbers:2
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Suspension Material:Steel
- Rear Suspension Type:Twin Sided Swing Arm
TECHNICAL SPECIFICATIONS
- Dry Weight (kg):254.9
- Dry Weight (lbs):562
- Engine Displacement to Weight (cc):2.14
- Fuel Capacity (gal):4.5
- Fuel Capacity (l):17
- Ground Clearance (in):4.1
- Ground Clearance (mm):105
- GVWR (kgs):454
- GVWR (lbs):1000
- Height (in):45.3
- Height (mm):1150
- Length (ft):7.3
- Length (ft/ft):7
- Length (ft/in):3.6
- Length (in):87.6
- Length (mm):2225
- Payload Capacity (kgs):186
- Payload Capacity (lbs):409
- Wet Weight (kg):268
- Wet Weight (lbs):591
- Wheelbase (in):60.2
- Wheelbase (mm):1530
- Width (in):33.1
- Width (mm):840
TRANSMISSION
- Gear Ratio (1):9.315
- Gear Ratio (2):6.653
- Gear Ratio (3):4.948
- Gear Ratio (4):4.102
- Gear Ratio (5):3.517
- Number Of Speeds:5
- Primary Drive (Engine / Transmission):Chain
- Primary Drive (Rear Wheel):Belt
- Transmission Type:Manual
WHEELS & TIRES
- Front Tire (Full Spec):Michelin® Scorcher™ 130/90 R16 73H
- Front Tire Aspect Ratio:90
- Front Tire Speed Rating:H
- Front Tire Width:130
- Front Wheel Diameter:16
- Rear Tire (Full Spec):Michelin® Scorcher™ 150/80 R16 77H
- Rear Tire Aspect Ratio:80
- Rear Tire Speed Rating:H
- Rear Tire Width:150
- Rear Wheel Diameter:16
- Tire Brand:Michelin®
- Wheels Composition:Steel
